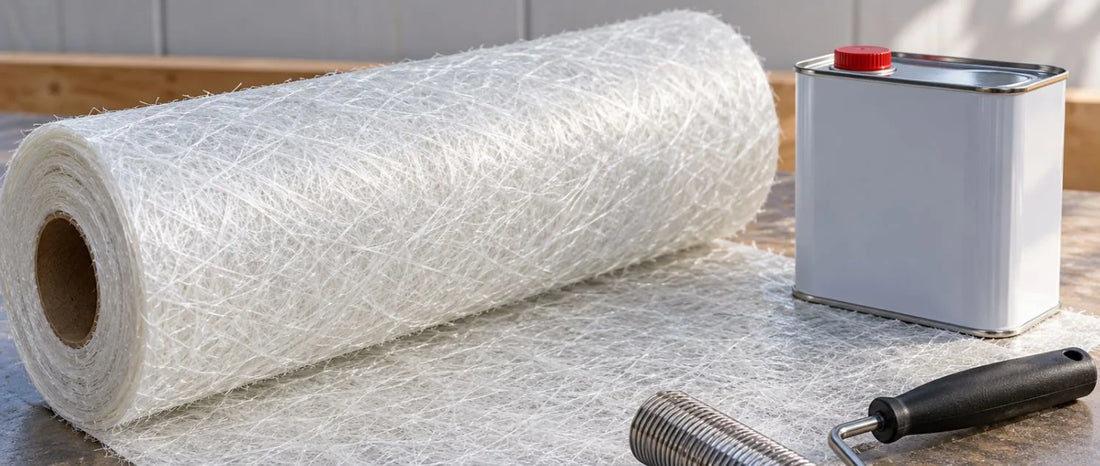

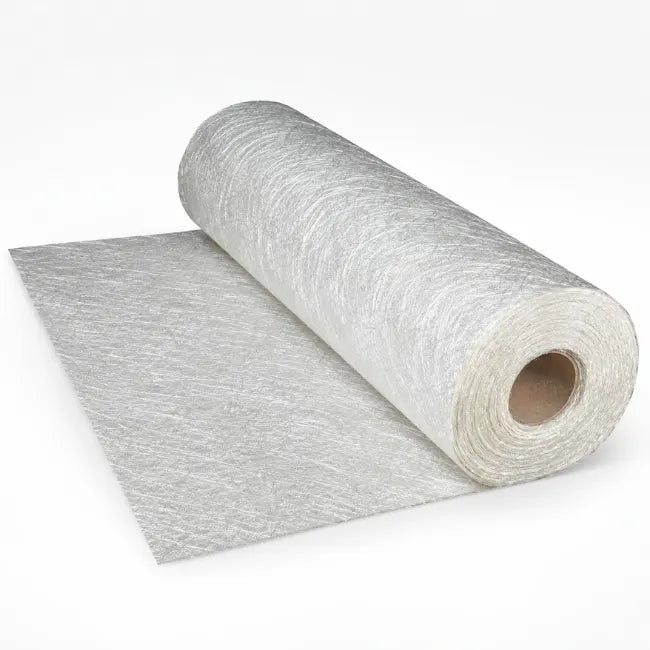

Chopped strand mat, usually shortened to CSM, is the glass-fibre reinforcement used in many GRP laminates. Once it is properly saturated with compatible laminating resin and consolidated, the two materials cure together to form a rigid composite. The numbers 225g, 300g, 450g and 600g describe the nominal weight of dry glass per square metre, not the weight of a whole roll. A higher GSM provides more glass reinforcement in each square metre, but it also needs more resin and is less easy to form around tight details. It is not automatically the correct or strongest choice for every job. This guide compares the four weights, their approximate coverage and resin demand, and explains how to select CSM as part of a complete GRP system. Quick answerChopped strand mat is made from short glass strands distributed in random directions and held together with a binder. The binder softens or dissolves during wet-out with a compatible resin, allowing the fibres to conform and become part of the laminate. Lightweight 225g and 300g mat can be useful for details, repairs, moulding and lighter laminates. In GRP roofing, 450g and 600g are common reinforcement grades, but the correct weight and number of layers must follow the selected roofing system rather than a rule of thumb. In this guide What CSM and GSM mean 225g, 300g, 450g and 600g compared Coverage and resin estimates Choosing CSM for a GRP roof Application and common mistakes Frequently asked questions What is chopped strand mat? Chopped strand mat is a non-woven reinforcement made from short glass fibres laid in a broadly random orientation. A binder holds the dry fibres together for cutting and positioning. Compatible resin softens or dissolves that binder, wets through the fibres and cures to form a reinforced laminate. CSM conforms well to curves and changes of shape, but GSM alone does not determine performance. Resin compatibility, layer sequence, substrate preparation, wet-out, consolidation, overlaps and curing conditions all matter. Important: Dry chopped strand mat is only one component. It does not become a weatherproof roof or structural laminate until it is correctly incorporated into an approved system with compatible resin, detailing and finish. What do 225g, 300g, 450g and 600g mean? The figure is the nominal areal weight, usually written as g/m² or GSM: 225g CSM: 225 grams of dry glass per square metre. 300g CSM: 300 grams of dry glass per square metre. 450g CSM: 450 grams of dry glass per square metre. 600g CSM: 600 grams of dry glass per square metre. It does not directly state the finished thickness. The cured laminate also contains resin, and its final thickness and properties depend on the material specification and how the laminate is made. Two laminates containing the same dry glass weight can perform differently if one is poorly wetted, contains air voids or uses an unsuitable resin. Chopped strand mat weight comparison CSM grade Dry glass per m² Approx. area per kg Typical characteristics Selection point 225g 0.225kg 4.44m² Light, flexible and easier to shape around details Useful where a light reinforcement or detailing layer is specified; not a substitute for a heavier approved roof laminate 300g 0.300kg 3.33m² Lighter than common 450g and 600g roofing grades Used in general laminating, repairs and moulding where the laminate design calls for it 450g 0.450kg 2.22m² Good balance of handling, conformity and reinforcement Common in domestic GRP roofing systems; follow the named system specification 600g 0.600kg 1.67m² More glass in one layer, with greater resin demand Used by systems requiring a heavier laminate; not automatically suitable for regular foot traffic These are broad selection characteristics, not universal specifications. For roofing, balconies, walkways, marine parts or structural components, use the complete system or laminate schedule supplied for that application. Is heavier chopped strand mat always better? No. A 600g mat contains more glass and demands more resin than 450g, while lighter mat is easier to form around tight details. Layers cannot be exchanged simply because their GSM totals look similar. For example, 450g plus 225g contains 675g/m², but that does not make it an approved replacement for one 600g layer. Two 450g layers create a different 900g/m² laminate rather than a guaranteed percentage increase in strength. For a detailed roofing comparison, read: 450g vs 600g Fibreglass Matting for GRP Roofs. How much area does 1kg of chopped strand mat cover? The theoretical area is calculated from the dry areal weight: Area per kilogram = 1 ÷ mat weight in kilograms per square metre CSM grade Calculation Theoretical coverage per kg Dry mat needed for 10m² 225g 1 ÷ 0.225 Approx. 4.44m² 2.25kg 300g 1 ÷ 0.300 Approx. 3.33m² 3.00kg 450g 1 ÷ 0.450 Approx. 2.22m² 4.50kg 600g 1 ÷ 0.600 Approx. 1.67m² 6.00kg The figures above are theoretical dry-mat quantities. A real order must also allow for overlaps, trimming, roof edges, upstands, outlets, penetrations, detailing and site waste. For roofing estimates, Apex commonly recommends allowing around 10–15% waste, subject to the roof shape and system instructions. See the full guide: How to Estimate Fibreglass Flat Roof Materials. How much resin does chopped strand mat need? Binder type, substrate and application method affect consumption. For estimating hand-laminated emulsion-bound CSM, some systems use roughly 2 to 2.5 times the dry mat weight in laminating resin. Always replace this estimate with the current spread rate for the selected GRP system. CSM grade Dry glass per m² Illustrative resin range at 2–2.5:1 Before ordering 225g 0.225kg Approx. 0.45–0.56kg/m² Use the named system's current coverage rate. Add substrate primer separately where required; do not count topcoat as laminating resin. 300g 0.300kg Approx. 0.60–0.75kg/m² 450g 0.450kg Approx. 0.90–1.13kg/m² 600g 0.600kg Approx. 1.20–1.50kg/m² Do not order resin from this table alone. Use the current application rate for the actual roofing or laminating system. Porous substrates may need separate priming, and resin lost in tools, containers or uneven surfaces increases real consumption. Which chopped strand mat is used for GRP roofing? In UK GRP flat roofing, 450g and 600g CSM are common, but the roof must be treated as a complete system. Its instructions determine the deck, resin, mat weight, layers, overlaps, trims, catalyst and topcoat. 450g chopped strand mat 450g CSM offers a practical balance of handling and reinforcement and is widely used in domestic GRP roof systems. It generally wets out and conforms to details more readily than a heavier grade. 600g chopped strand mat 600g CSM contains one-third more dry glass per square metre than 450g and needs more resin. Some heavy-duty or manufacturer-specific systems call for it, but one 600g layer does not by itself make a roof suitable for regular foot traffic. What about balconies and walkways? Balconies and walkways may require multiple layers, a traffic-grade system, anti-slip finish, structural checks and specific detailing. Do not change or combine mat weights unless the complete laminate schedule permits it. Shop GRP reinforcement Fibreglass Matting & Tapes Browse chopped strand mat, fibreglass tape and surface tissue for GRP roofing, repairs and general laminating. Select the reinforcement specified by your complete system. Chopped strand mat Fibreglass tape Surface tissue Shop Matting & Tapes → Compare GRP roof kits How to laminate chopped strand mat correctly Follow the selected resin or GRP system instructions. A typical hand lay-up follows six stages: Prepare and plan. Confirm the substrate is suitable, dry and clean; pre-cut mat and allow the specified overlaps. Mix a workable resin batch. Measure the stated catalyst ratio for the product and conditions. Lay and wet the mat. Apply resin as directed, position the CSM and wet it evenly until the fibres change from white to translucent. Consolidate. Use a suitable roller to remove trapped air without stripping out too much resin. Complete details and cure. Maintain reinforcement at joints, trims and penetrations, then protect the laminate from rain, dew and unsuitable temperatures. Apply the specified finish. A roof laminate requires its compatible topcoat or finishing system. Correctly wetted mat should appear uniformly translucent, without persistent white patches, bubbles, tenting, dry overlaps or pools of excess resin. A resin-rich laminate is unnecessarily heavy and can be brittle; a resin-starved one may contain dry fibres and voids. Accurate measuring and consolidation matter more than adding extra resin. Can chopped strand mat be used with any resin? No. Many roofing and general-purpose products use a binder designed for styrene-containing polyester or vinylester resin. Standard emulsion-bound CSM is not automatically compatible with epoxy. For epoxy or specialist low-styrene resin, use reinforcement explicitly approved for that resin. Chopped strand mat vs fibreglass tape and surface tissue These materials perform different jobs. Material Construction Typical role Can it replace the main CSM layer? Chopped strand mat Randomly oriented chopped glass fibres with a binder General laminate reinforcement It is normally the principal reinforcement where the system specifies CSM Fibreglass tape Narrow reinforcement strip; construction varies by product Local joints, seams, trims, repairs or details No, unless a specific design expressly uses it as part of the laminate schedule Surface tissue Very light, fine glass veil Smoother surface, resin-rich finish or print-through control No; it is not a substitute for structural CSM reinforcement Common chopped strand mat mistakes Choosing by GSM alone. The complete laminate schedule, not one number, determines suitability. Treating 450g plus 225g as an automatic substitute for 600g. Combined weight does not prove system equivalence. Using too little or too much resin. Dry fibres, voids or resin-rich areas can compromise the laminate. Leaving trapped air. Bubbles and bridging interrupt the reinforcement. Ignoring the binder and resin combination. A mat designed for polyester resin may not wet out correctly with epoxy. Making batches that are too large. Catalysed resin can cure before it is properly applied and consolidated. Laminating in unsuitable conditions. Temperature, moisture, rain and dew can interfere with application and cure. Assuming a heavier mat creates a walkable roof. Traffic areas need a suitable full system and structural design. Forgetting waste and details. Upstands, outlets, trims, overlaps and awkward shapes increase material demand. How should chopped strand mat be stored? Keep CSM in its original packaging in a cool, dry area away from sunlight, moisture, heat and contamination. Do not laminate wet, dusty, crushed or badly creased matting. Frequently asked questions What does CSM stand for in fibreglass? CSM stands for chopped strand mat. It is a non-woven glass-fibre reinforcement commonly used with compatible polyester or vinylester laminating resin. Is 600g chopped strand mat stronger than 450g? One square metre of 600g CSM contains more dry glass than one square metre of 450g CSM, but finished strength cannot be predicted from GSM alone. Resin choice, layer count, fibre distribution, consolidation, cure and the overall system all affect performance. How much area do 450g and 600g CSM cover? The theoretical dry coverage is approximately 2.22m²/kg for 450g and 1.67m²/kg for 600g. Allow extra for overlaps, cuts, details and waste. Can I use two layers of 450g instead of 600g? Not as an automatic substitution. Two 450g layers create a 900g/m² dry-glass build-up and demand more resin and labour than one 600g layer. Use that construction only where the roofing or laminate specification permits it. Can I use 225g CSM for a complete GRP roof? Do not use it as the main roof reinforcement unless the selected roofing system explicitly specifies that build-up. A 225g layer may be useful for particular details or non-roofing laminates, but it is not a universal replacement for common 450g or 600g roof laminates. Is chopped strand mat waterproof by itself? No. Dry CSM is porous reinforcement. In a GRP system, compatible resin saturates and binds the fibres, and the cured laminate is then protected with the specified topcoat or finish. Do I need a paddle roller? A suitable consolidation roller is strongly recommended for hand lay-up. It helps work resin through the fibres and remove trapped air. The roller does not replace accurate resin measurement or careful detailing. Before you order Have the following information ready: application, measured area and roof shape; selected GRP system, CSM grade and number of layers; overlaps, trims, upstands, outlets and penetrations; approved resin, primer and topcoat application rates; expected conditions, waste allowance, tools and PPE; any fire, access, warranty or structural requirements. For example, 20m² × 0.45kg = 9kg of 450g CSM before waste, or approximately 9.9kg with 10% added. Calculate resin, primer, topcoat and details separately using the selected system rates. Technical references This guide was prepared with reference to current Apex product and technical guidance, emulsion-bound E-glass CSM technical data, and manufacturer application information. Product formulations, stock and system instructions can change. Always check the latest technical data sheet for the exact matting and resin being used. Apex Fibreglass Matting & Tapes Apex guide: 450g vs 600g Fibreglass Matting Apex guide: How to Estimate Fibreglass Flat Roof Materials Emulsion-bound Chopped Strand Mat Technical Data Cromar PRO GRP Chopped Strand Matting Technical Data Choose the matting that matches the system The useful question is not simply “Which GSM is strongest?” It is “Which complete laminate is approved for this job?” Start with the application and selected system, then calculate the matting, resin and detailing materials from that specification. Browse the Apex fibreglass matting and tapes collection, compare GRP roofing kits, or contact Apex with the roof area, intended use and chosen system before ordering.
