Warm Roof vs Cold Roof: Vapour Barriers and U-Values Explained

Getting the insulation and moisture control right is just as important as choosing the waterproofing for a flat roof. If the build-up is poorly designed or the vapour-control layer is left incomplete, warm, moisture-laden air can enter colder parts of the roof and create interstitial condensation. The result may be wet insulation, timber decay and damage that remains hidden until the roof is opened.

This guide explains the difference between a warm roof and a cold roof, where the vapour control layer goes, how flat-roof U-values work and what to check when choosing an AVCL for a GRP or EPDM roof.

Quick answer: for most new domestic flat roofs, a properly designed warm roof is the preferred approach. The main insulation is installed above the structural deck, with a continuous air and vapour control layer on the warm side of the insulation. A cold roof can still be used, but it depends on correctly designed, unobstructed ventilation and careful moisture control.

Scope: this is general guidance for domestic flat roofs in England. Requirements differ in Scotland, Wales and Northern Ireland, and non-domestic projects may follow different guidance. The final build-up should be confirmed through a project-specific U-value and condensation-risk assessment.

In this guide

• Warm roof and cold roof differences.
• Where the AVCL should be installed.
• How hybrid roofs affect condensation risk.
• How to compare self-adhesive vapour-control membranes.
• Current roof U-values for domestic work in England.
• GRP and EPDM warm-roof compatibility.
• The checks to complete before ordering materials.

Warm roof or cold roof — what's the difference?

What is a warm flat roof?

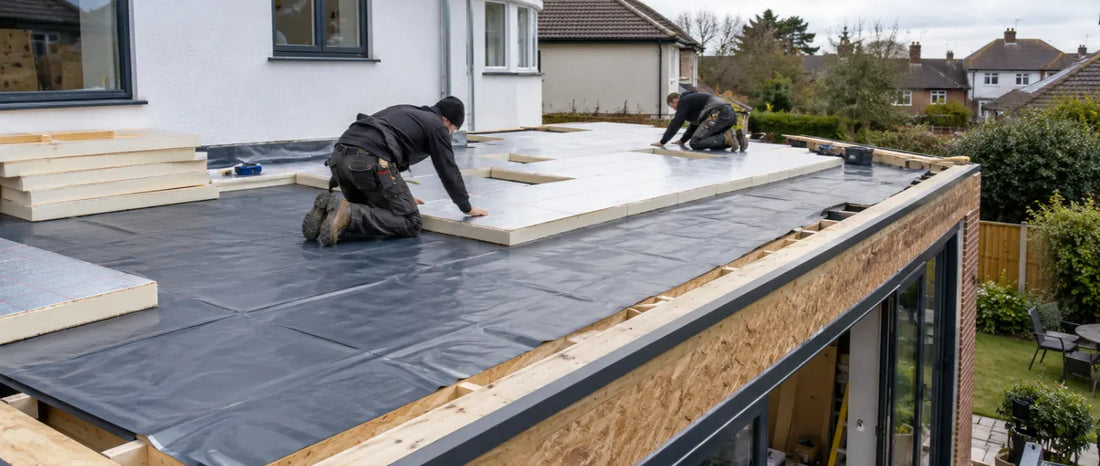

In a warm roof, the principal insulation layer is installed above the structural deck and beneath the waterproofing. This keeps the deck warmer and reduces the risk of condensation within the construction, provided the AVCL, insulation and waterproofing are designed and installed as one compatible system.

A standard warm roof does not rely on ventilation beneath the deck. Its performance depends instead on continuity: the AVCL must be sealed at laps, edges, penetrations, rooflights and wall junctions, while the insulation should remain continuous wherever possible to limit thermal bridging.

What is a cold flat roof?

In a cold roof, the insulation is installed between or below the joists, leaving the deck on the cold side of the insulation. A ventilated void is normally required between the insulation and deck so that external air can move through the roof space and carry moisture away.

Cold flat roofs can be difficult to detail where joists, noggins, rooflights, abutments or changes in roof shape interrupt the ventilation path. They should not be treated as a cheaper warm roof: the ventilation openings, free air path, vapour control and junctions all need to be designed for the actual roof.

There is also an inverted roof, where the insulation is installed above the waterproofing and held in place by ballast or another finish. That is a different construction and is outside the main scope of this guide.

What does a warm flat roof build-up look like?

A typical timber-deck warm roof may include the following layers, from inside to outside:

1. Internal ceiling and service zone, where included in the design.
2. Roof structure and structural deck, such as OSB3, plywood or another approved deck.
3. Substrate primer, where required by the selected AVCL and deck.
4. Air and vapour control layer (AVCL), fully bonded or otherwise installed to the system specification, with all laps and details sealed.
5. Thermal insulation, selected and sized through a project-specific U-value calculation.
6. System-approved cover board, carrier board or bonding surface, where required by the waterproofing manufacturer.
7. Waterproofing system, such as GRP or EPDM, complete with compatible trims, outlets and details.

This is a general sequence, not a universal specification. Concrete, metal and timber decks can require different primers, attachment methods and build-ups. The complete roof must also satisfy the project's structural, wind-uplift, drainage and fire-performance requirements.

VCL, AVCL and vapour barrier — are they the same?

The terms are often used interchangeably, but they are not always identical:

• A vapour control layer (VCL) limits the movement of water vapour through the roof by diffusion.
• An air and vapour control layer (AVCL) controls vapour and also forms part of the airtight layer, reducing the movement of warm, moist air through gaps in the construction.
• Vapour barrier is the common trade and search term, usually used for a membrane with very high vapour resistance. Not every product described as a VCL is a complete barrier.

For a warm flat roof, airtightness is especially important because air leakage can transport far more moisture into the build-up than vapour diffusion alone. Product performance matters, but so does installation continuity.

Where does the AVCL go — and why?

In a conventional warm roof, the AVCL is placed on the warm side of the main insulation layer, commonly over the structural deck and directly beneath the insulation.

Its purpose is to reduce both air leakage and vapour movement from the occupied space into colder parts of the roof. For it to work correctly, it should remain continuous across the whole roof and connect securely at:

• Side and end laps.
• Parapets and perimeter upstands.
• Wall abutments.
• Rooflight kerbs.
• Pipes, outlets and other penetrations.
• Changes of level and interfaces with adjoining airtight layers.

Use the lap widths, primer, tape, sealant and detailing accessories specified for the exact membrane. A generic tape should not be assumed to be compatible with every AVCL.

What is a hybrid flat roof — and why does it need checking?

A hybrid roof contains insulation both above and below the structural deck. This can happen unintentionally when an existing cold roof is upgraded by adding insulation above the deck while the original insulation remains between the joists.

That change affects the temperature and drying potential of the deck. Whether the construction is safe depends on the amount and type of insulation on each side, internal humidity, airtightness, materials and external conditions. Do not assume that retaining the old insulation will always improve performance.

Before converting a cold roof to a warm roof, establish what is already below the deck and obtain a project-specific moisture assessment in line with BS 5250:2021 and, where it applies to the selected waterproofing system, the current guidance in BS 6229:2025.

Which vapour-control membrane should you use?

The right AVCL is selected as part of the complete roof system. Consider the deck, internal humidity, attachment method, insulation adhesive, site temperature, expected traffic during installation and the waterproofing above it — not simply the membrane with the highest vapour resistance.

Product examples listed by Apex include:

The Sd value indicates the membrane's resistance to water-vapour diffusion: a higher value means greater resistance. It does not, by itself, prove that a product is right for a particular roof.

Availability and technical instructions can change. Check the current product page and latest manufacturer data sheet before ordering or installing. Browse the full vapour barrier collection.

Choosing an AVCL? Start with the roof design, substrate and approved system components rather than price alone. If a listed membrane is unavailable, contact Apex before substituting another product.

Is double-sided tape another type of vapour barrier?

No. Jointing tape is an accessory used in certain membrane systems; it is not an AVCL. Some self-adhesive membranes form laps using their own adhesive, while others require a specified tape, pressure roller, sealant or heat treatment. Follow the current instructions for the chosen product rather than adding a universal tape by default.

Do all self-adhesive AVCLs need primer?

Not every self-adhesive membrane uses the same primer rule, and the requirement may vary by substrate. "Self-adhesive" does not automatically mean "primer-free". The deck must be dry, sound, clean and prepared as specified, and the matching primer must be used wherever the current technical data requires it.

How do flat-roof U-values work?

A U-value measures the rate of heat transfer through the complete roof build-up. It is expressed in W/m²K, and a lower figure means less heat passes through the roof.

The U-value is not determined by waterproofing alone, nor by insulation thickness alone. The calculation considers the insulation's declared thermal conductivity, every material layer, fixings, repeating thermal bridges, surface resistances and the geometry of the build-up. That is why a generic statement such as "120 mm of PIR meets Building Regulations" can be misleading.

Roof U-values under Approved Document L 2021 — England

Figures checked in October 2026.

For domestic work in England proceeding under the 2021 edition incorporating 2023 amendments, the limiting values depend on the type of project:

These are limiting values, not guaranteed design targets for every project. A new dwelling's whole-building energy calculation may require the roof to perform better. Use a project-specific calculation to select the insulation type and thickness, and confirm the specification with the designer or building control body.

Does replacing a flat-roof membrane trigger an insulation upgrade?

It can. Under the current guidance for existing dwellings in England, replacing the waterproof membrane on a flat roof is treated as renovation of a thermal element. An upgrade is normally considered where more than 50% of the individual thermal element is renovated, or where the work forms part of a major renovation affecting more than 25% of the external building envelope.

Practical limitations — including structural capacity, roof height and upstand dimensions — can affect what is reasonably achievable, but they should be assessed rather than assumed. Check the current Approved Document L guidance before work begins.

Regulatory update: this article was technically reviewed in October 2026. The 2021 edition of Approved Document L incorporating 2023 amendments remains relevant to current work, while a 2026 edition has been published for work beginning under the new regime from 24 March 2027 in most cases. Always check the edition and transitional arrangements that apply to the project.

Common mistakes that cause condensation or system failure

• Omitting the AVCL or putting it on the wrong side of the insulation. This can allow moisture to enter colder parts of the roof.
• Leaving gaps at laps, edges or penetrations. An AVCL is only as effective as its weakest unsealed junction.
• Assuming every self-adhesive membrane is primer-free. The primer and preparation requirements are product- and substrate-specific.
• Using a generic tape or sealant. Accessories must be compatible with the selected membrane and complete roof system.
• Leaving existing insulation below the deck without checking it. This may create an unplanned hybrid roof with a different condensation risk.
• Blocking the ventilation path in a cold roof. Insulation, noggins and poorly positioned vents can interrupt cross-ventilation.
• Ignoring thermal bridges. Perimeters, kerbs, steelwork and changes of level can undermine otherwise good insulation.
• Laminating or bonding directly to an unsuitable insulation face. GRP and EPDM each require an approved substrate and attachment method.
• Treating internal condensation as a waterproofing leak. Applying another topcoat will not correct a moisture problem within the build-up.
• Selecting components separately. Fire performance, wind-uplift resistance and warranty usually relate to the tested or approved roof system, not to one product in isolation.

If the source of damp is uncertain, investigate the existing construction before re-covering it. Do not trap wet insulation or a damp deck beneath a new roof.

Can a warm roof be finished with GRP or EPDM?

Yes, provided the full build-up is compatible with the selected waterproofing system.

Warm roof with GRP. A GRP laminate should be installed onto the substrate approved by the GRP system manufacturer. In a warm-roof construction, this usually means providing a suitable carrier or cover board above the insulation rather than laminating directly onto an unapproved PIR face. The board type, thickness, support, joint arrangement and fixing method must suit the system and wind-load design. Browse Apex GRP roofing kits, then confirm the complete warm-roof specification before ordering.

Warm roof with EPDM. EPDM requires a compatible insulation facer or an approved cover board, together with the correct adhesive and perimeter detailing. Do not assume that any EPDM adhesive can bond directly to any insulation board. See the Apex EPDM roofing range and check the membrane manufacturer's approved substrates, adhesives and attachment requirements.

If you are comparing insulation approaches as well as waterproofing, read the Apex guide to insulating a flat roof.

Continue shopping: Browse GRP Roofing Kits · Browse EPDM Roofing

Which roof build-up should you choose?

Frequently asked questions

Is a warm roof better than a cold roof? For most new domestic flat roofs, a properly designed warm roof is the preferred starting point because the deck remains on the warm side of the main insulation and the construction does not rely on a ventilated void beneath it. A cold roof can still work, but only where effective ventilation and moisture control can be designed and maintained.

Where does the vapour barrier go on a warm flat roof? The AVCL goes on the warm side of the main insulation layer, commonly over the structural deck and directly beneath the insulation. It must connect continuously at laps, perimeters, upstands and penetrations.

Does every flat roof need a vapour barrier? A warm flat roof will normally include an AVCL as part of its condensation and airtightness strategy, but the required type and vapour resistance depend on the complete design. A cold roof usually needs vapour control at ceiling level as well as correctly designed ventilation above the insulation.

What U-value does a flat roof need in England? It depends on the project. Under the current Approved Document L guidance, the maximum limiting roof U-value is 0.16 W/m²K for a new dwelling and 0.15 W/m²K for a new or replacement roof element in an existing dwelling. A qualifying renovation uses a 0.35 W/m²K threshold and an 0.16 W/m²K improved value, subject to the applicable guidance and feasibility provisions.

How thick should the PIR insulation be? There is no reliable universal thickness. Different PIR products have different declared thermal conductivities, and the deck, cover board, fixings and thermal bridges affect the result. Use a calculation for the complete roof build-up rather than choosing insulation from a rule of thumb.

Can I convert a cold roof into a warm roof? Often, yes. However, the existing insulation must be identified and assessed so the conversion does not create an unsafe hybrid roof. The design should also check roof height, drainage, thresholds, kerbs, upstands, edge details, structural loading, wind resistance and fire performance.

Can GRP or EPDM be installed directly onto PIR? Only where the complete waterproofing system explicitly approves the particular insulation face, adhesive and attachment method. GRP commonly needs an approved carrier or cover board. EPDM may use a compatible faced insulation or cover board, depending on the system. Do not assume direct bonding is acceptable.

Can a self-adhesive AVCL be laid without a torch? The products compared above are designed for cold, self-adhesive application, so a naked flame is not required to bond the main field membrane. Primer and lap treatment may still be required; for example, the current StrataShield instructions call for hot-air treatment of laps below 10°C. Follow the latest data sheet.

Is an AVCL the same as a breather membrane? No. An AVCL is installed on the warm side of the insulation to restrict air leakage and water-vapour movement from inside the building. A breather membrane is vapour-open and is normally positioned on the colder side of an appropriate construction to allow outward drying. They are not interchangeable.

Can GRP or EPDM replace the AVCL? No. GRP and EPDM form the external waterproofing layer that keeps rainwater out. The AVCL controls warm, moisture-laden air and vapour coming from inside the building. In a warm roof, the waterproofing and AVCL perform different jobs within the same build-up.

Technical references

This guide has been prepared with reference to the following documents and current manufacturer information:

• Approved Document L: Conservation of Fuel and Power — 2021 edition incorporating 2023 amendments.
• Approved Document L: Energy and Greenhouse Gas Emissions — 2026 edition, including the applicable commencement and transitional arrangements.
• BS 5250:2021 — Management of Moisture in Buildings.
• BS 6229:2025 — Flat Roofs with Continuously Supported Flexible Waterproof Coverings.
• Current manufacturer technical data for ALUTRIX 600, StrataShield SA ALU VB and Elotene DSN.

Standards, regulations and product instructions can change. Always check the latest applicable edition and confirm the project-specific roof design before installation.

Before you order

Have the following information ready:

• The roof length and width, including upstands and changes of level.
• The deck material, condition and thickness.
• Details of any existing insulation above or below the deck.
• The room use and expected internal humidity.
• The required U-value and condensation-risk assessment.
• The intended GRP, EPDM or other waterproofing system.
• The insulation, cover board and attachment method approved for that system.
• The required primer, lap treatment, sealants and detailing accessories.
• The number and size of rooflights, outlets, pipes and other penetrations.
• Any structural, wind-uplift, fire or building-control requirements.

Build the whole roof as one system

The safest sequence is simple: design the build-up, control air and vapour, calculate the insulation, then install a compatible waterproofing system. Do not select the AVCL, insulation and roof covering as unrelated products.

Shop vapour barriers · GRP roofing kits · EPDM roofing range

If you are unsure which build-up suits the roof, contact Apex with the roof dimensions, deck type, existing insulation and proposed waterproofing. It is far easier to resolve compatibility and moisture-control details before the roof is opened.
